Room Occupancy Monitoring for Workplace Management and Optimization – Track Space Utilization and Optimize Service Schedules – No Subscription Required

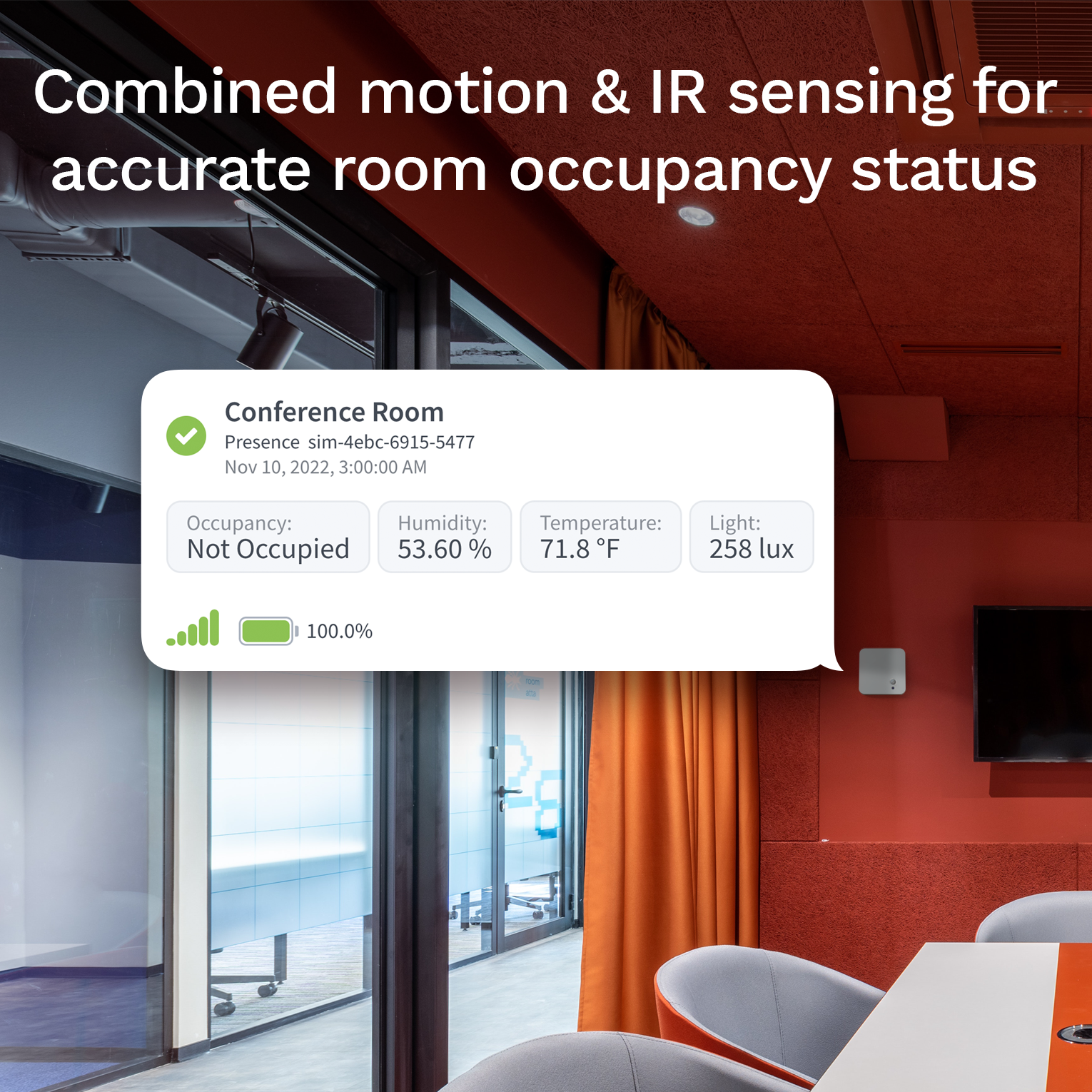

- Combined motion and IR sensing for accurate room occupancy status

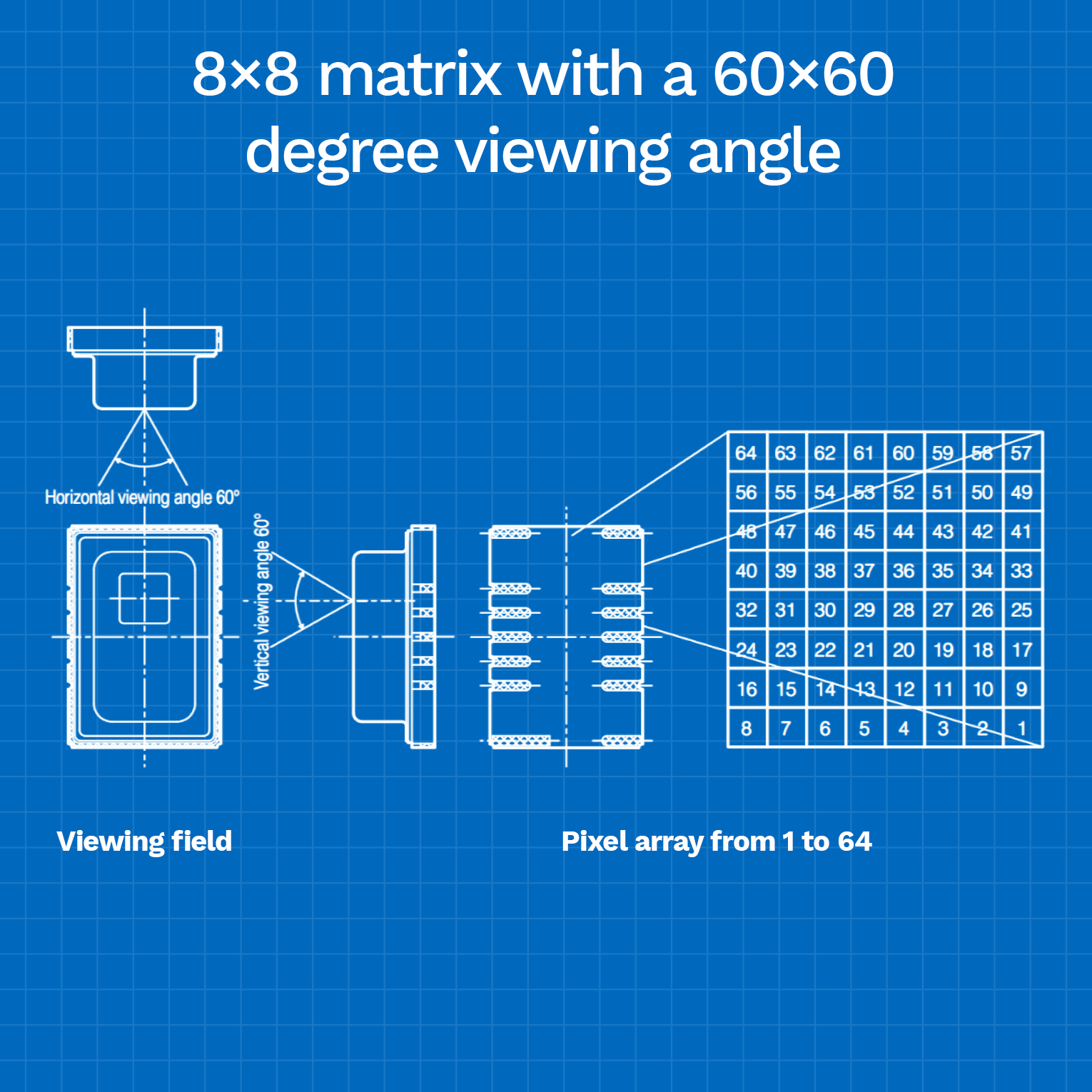

- 8×8 matrix with a 60×60 degree viewing angle
- Additional onboard sensors for environmental monitoring | Temperature, Humidity, Light

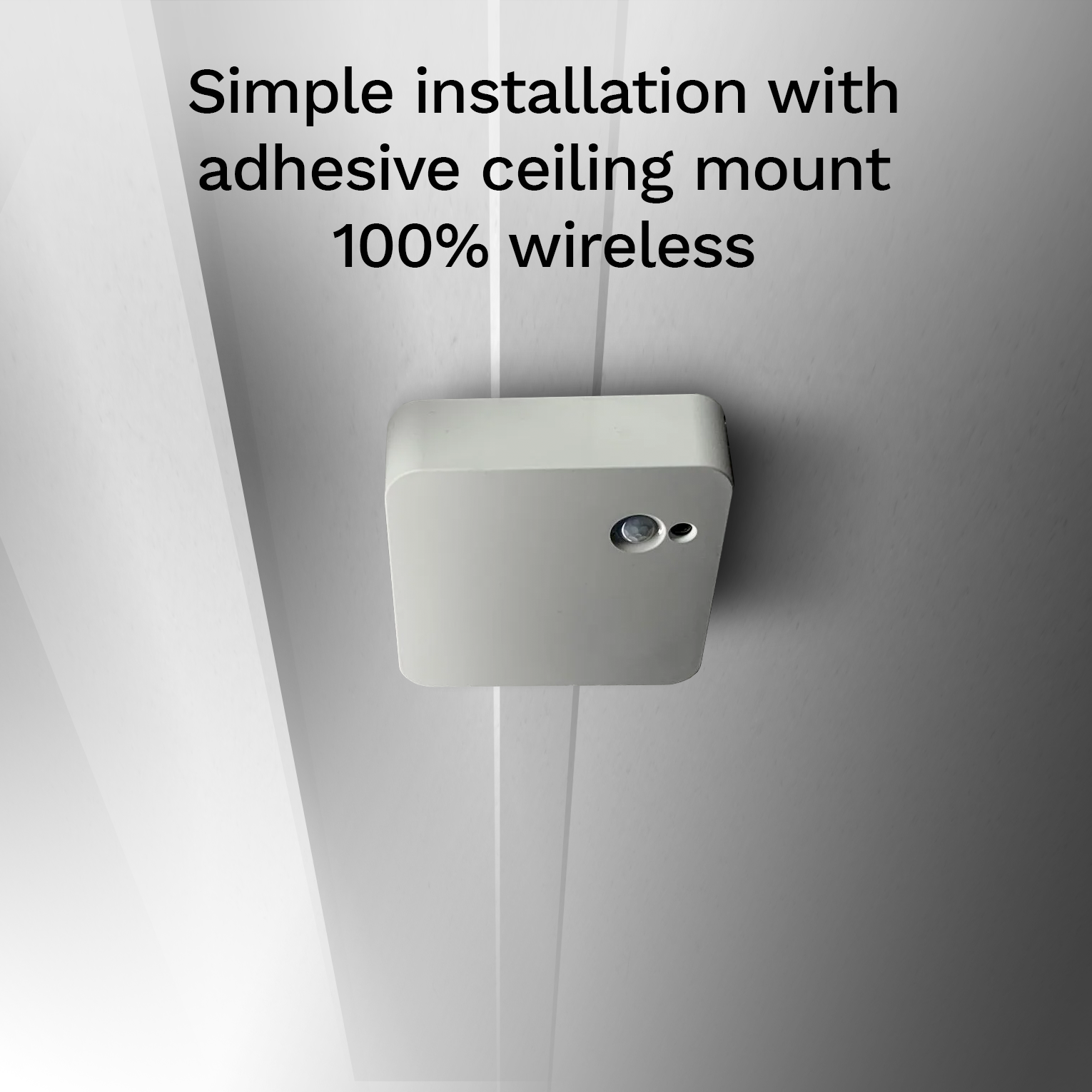

- Simple installation with adhesive ceiling mount | 100% wireless

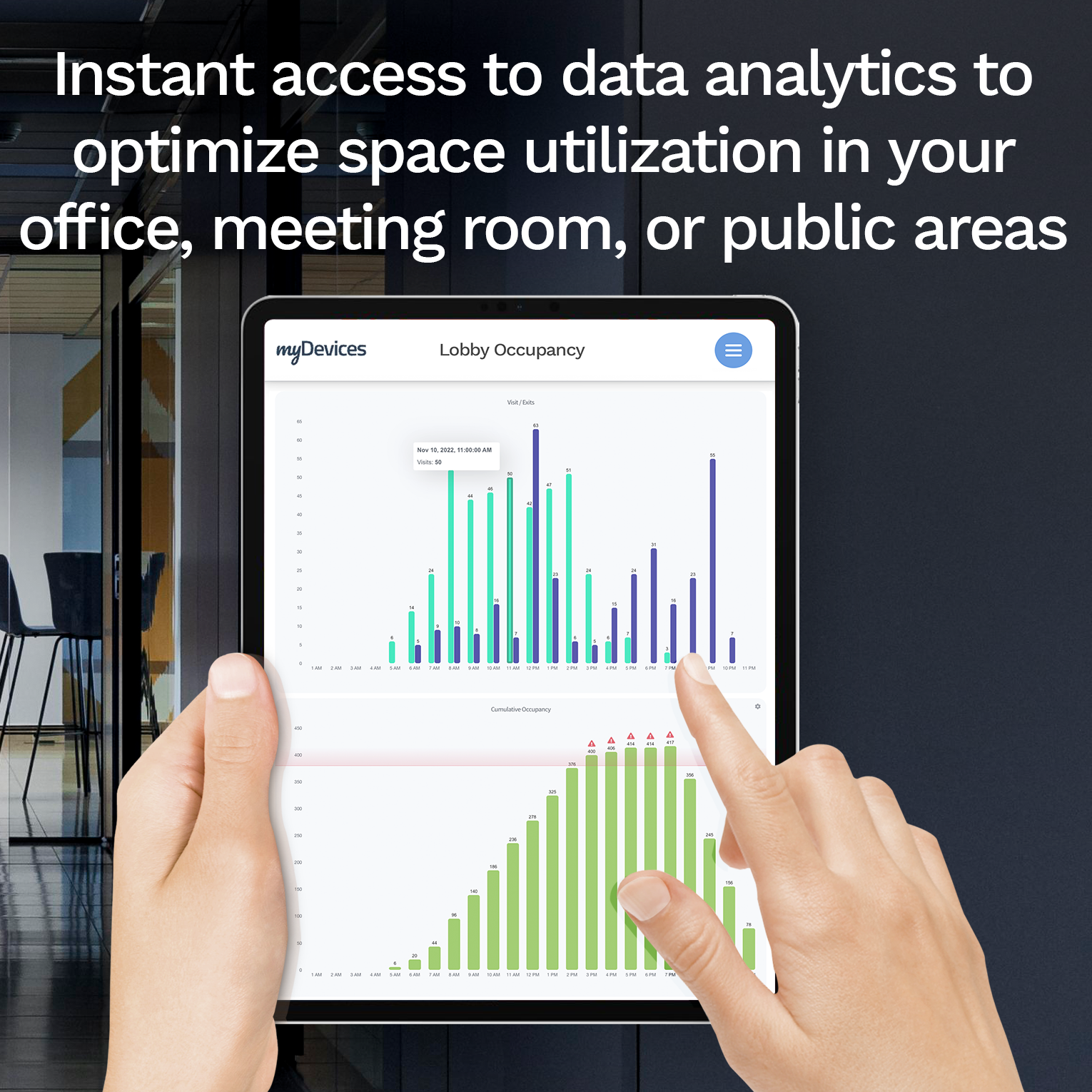

- Instant access to data analytics to optimize space utilization in your office, meeting room, or public areas
- 5 years of battery life | AA Batteries included
- 1-year warranty on device and parts | FCC & IC Certified
Solution Description
Workplace Management and Optimization
Save time and money by efficiently automating building operations with occupancy monitoring data.
Comprehensive Room Occupancy Tracking
Occupancy monitoring removes the guesswork from essential business decisions improving and enhancing space utilization and workforce management. Optimize cleaning schedules, align staffing needs with peak and slow times, and reduce energy usage.
Optimize Cleaning Schedules
Utilize your maintenance staff’s time more efficiently with demand-driven cleaning requests solely based on usage.
Automate Conference Room Availability
Connect to existing workspace management software to make space available to book when not in use.
Save Energy Use
Get the data you need to help you schedule energy use efficiently. See the cost savings from your power usage over time.

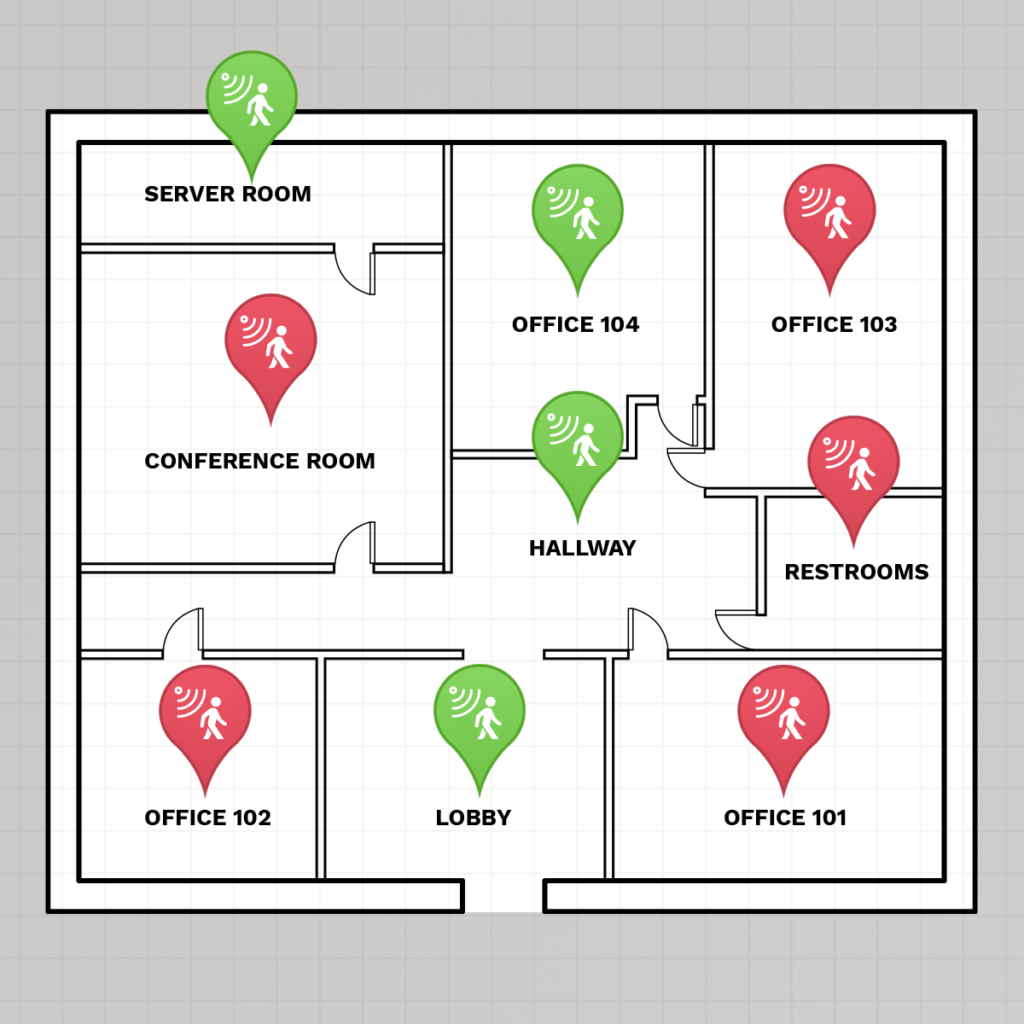

Visualize Occupancy
See real-time occupancy status represented on floor plans, images, or maps across multiple rooms, areas and more!
Easy Installation

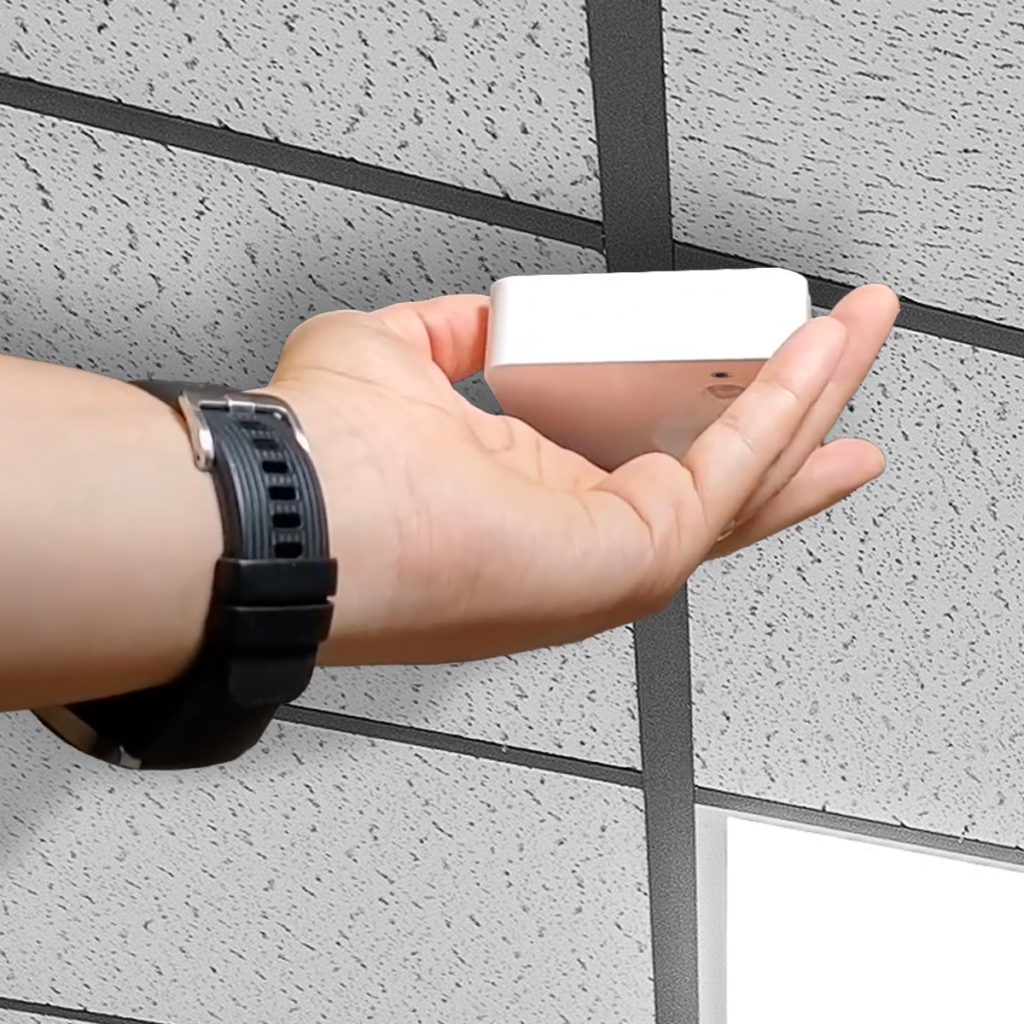

Installation is a breeze. Simply remove the back panel of the sensor and mount the panel to the ceiling or wall with 2 screws.

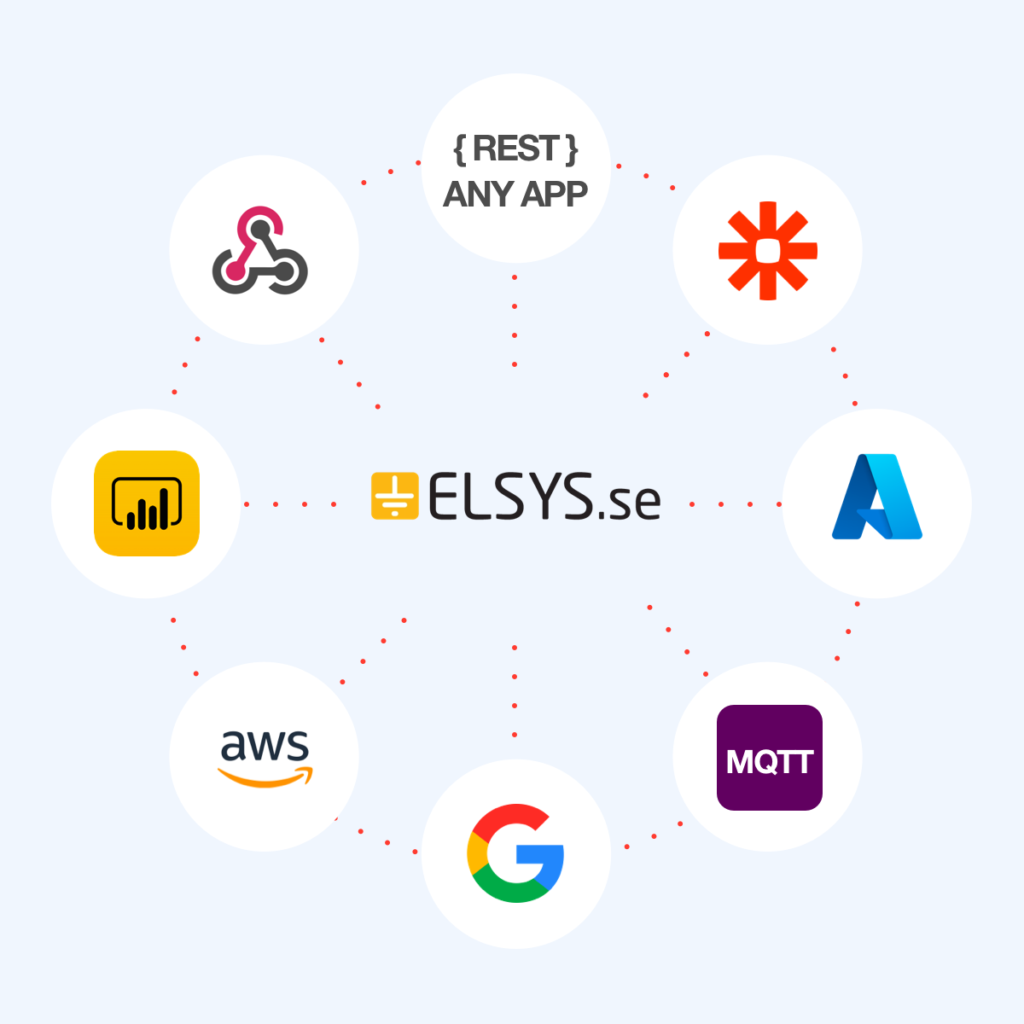

Instantly Connect to Any App or Platform
Easily connect room occupancy data to existing systems, business intelligence tools, or any 3rd party app or platform.
How it works
Plug and Play Room Occupancy Monitoring
1

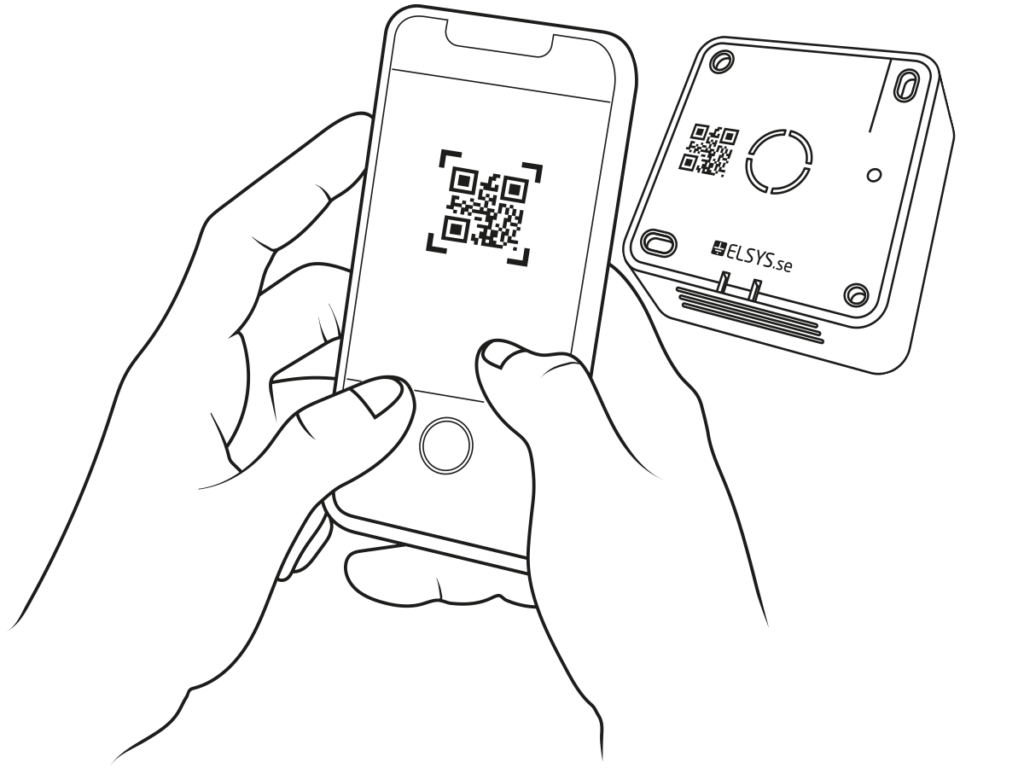

SCAN
Scan the QR code to onboard your device
2
MOUNT
Mount the sensor on the ceiling or on the wall
3
TRACK

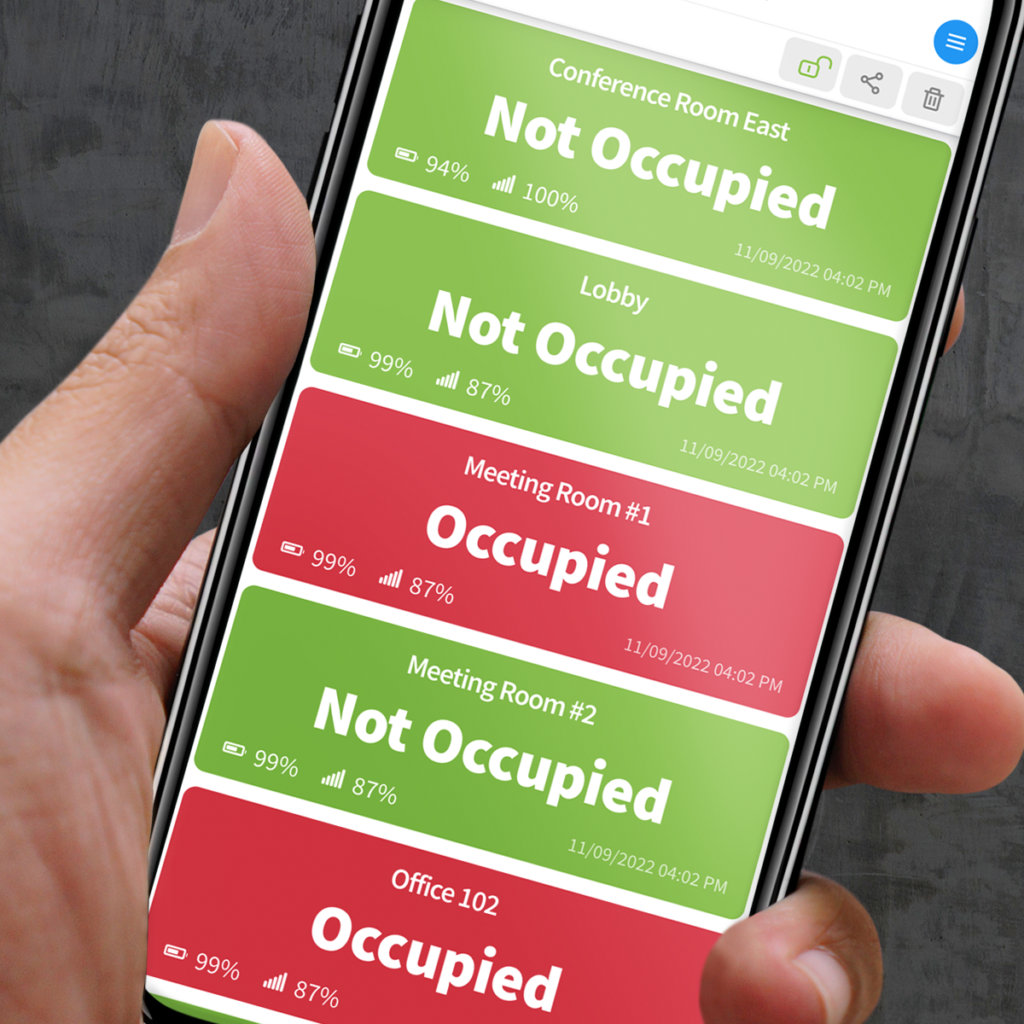

Monitor room occupancy right from the mobile or web app
Product Specifications
| Mechanical specifications | |
|---|---|
| Weight | 60 g excluding batteries / 100 g including batteries |
| Dimensions | 86 x 86 x 27 mm |
| Enclosure | < 0.02 °C/yr |
| Weight | 60 g excluding batteries / 100 g including batteries |
| Dimensions | 86 x 86 x 27 mm |
| Enclosure | Plastic, PC/ABS |
| Operating conditions | |
|---|---|
| Temperature | 0 to 50 °C |
| Humidity | 0 to 85 % RH (non-condensing) |
| Device Power Supply | |
|---|---|
| Battery Type | 2 x 3.6V AA Lithium Batteries |
| Expected Battery Life | <5 years (Depending on configurations and environment) |
| Radio / Wireless | |
|---|---|
| Wireless Technology | LoRaWAN® 1.0.3 |
| Wireless Security | LoRaWAN® End-to-End encryption (AES-CTR), Data Integrity Protection (AES-CMAC) |
| LoRaWAN® Device Type | Class A/C (configurable) End-device |
| Supported LoRaWAN® features | OTAA, ABP, ADR, Adaptive Channel Setup |
| Supported LoRaWAN® regions | US902 – 928, EU863 – 870, AS923, AU915 – 928, KR920 – 923, RU864, IN865 |
| RF Transmit Power | 14 dB / 20 dB (Region specific) |
| Data types | |
|---|---|
| Temperature | -3276.5 °C → 3276.5 °C (Value of: 100 → 10.0 °C) |
| Humidity | 0 – 100 % |
| Light | 0 – 65535 Lux |
| Motion (PIR) | 0 – 255 (Number of motion counts) |
| VDD (Battery voltage) | 0 – 65535 mV |
| Occupancy | 0 = Unoccupied / 1 = Pending(Entering or leaving) / 2 = Occupied |

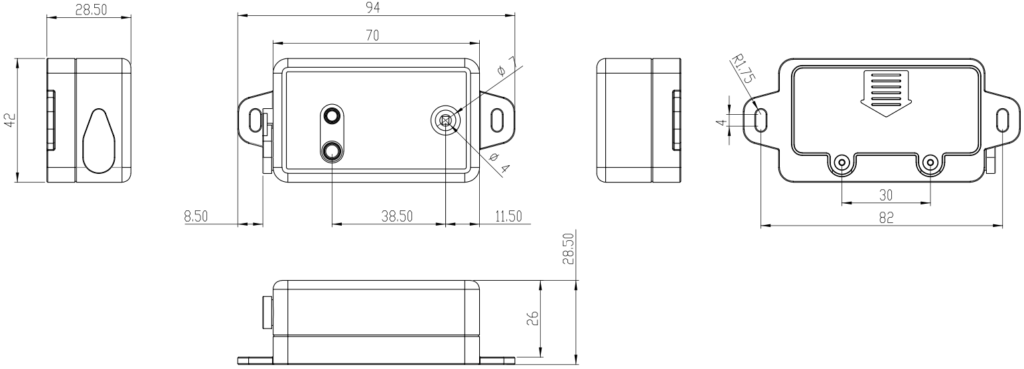

Dimensions
(mm)
Questions & Answers
Are there volume discounts available?
Absolutely, per-device subscription prices decrease as your deployments begin to increase in volume. Please schedule a call with our sales team to discuss your specific requirements to get a customized quote.
Can I white-label the app?
Yes, we can white-label our app and deploy it on a private domain for you. You’ll receive both a web-based and a mobile-based application with your logo and colors, running on your own private realm. Contact sales for more information.
Is there a paid plan associated with this solution?
myDevices offers a free POC plan that supports up to 5 connected devices. For more information on available plans, visit our plans and pricing page.
Can I upgrade or change my monthly plan after ordering?
Yes, you may upgrade to one of our commercial plans at any time if your volumes increase or you simply need access to added support and features.
Is there a month-to-month contract?
If you do upgrade to a paid plan, no contract is required. However, your account will be charged automatically monthly. You may cancel at any time without any penalties.
Does the app indicate the current battery life of the devices?
Yes, you will see battery life as well as signal strength. You can also set SMS and/or email alerts based on battery and signal levels.
Can I track from my PC?
Yes, the tracking application works across all devices (mobile, tablet, and desktop).
Does this work on Android?
Yes, it works across all platforms on any operating system.
Can I add more than one device to the same app?
Yes, you may add as many devices onto one account as you need.
Do you have an open API, and can I connect data to my own platform?
Yes, we have several ways of integrating or connecting the data, please review our docs page here: https://docs.mydevices.com
Is the data secure?
Please review the myDevices Security White Paper.
Deploy Room Occupancy Monitoring
Talk to our team of experts to help you deploy room occupancy monitoring solutions.
