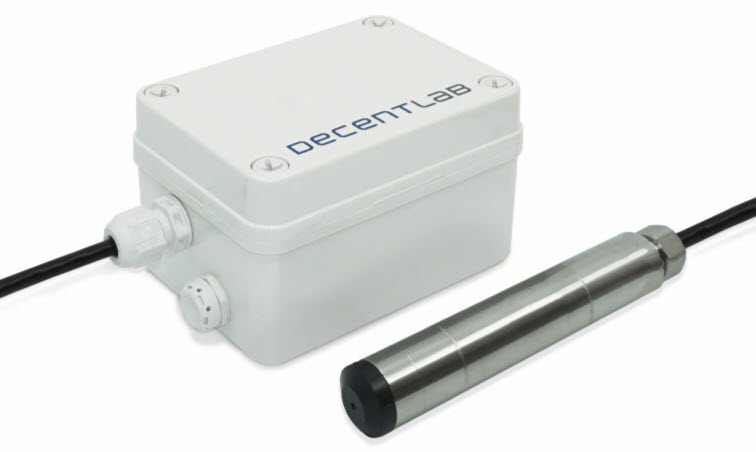

DecentLab High-Precision Pressure/Liquid Level and Temperature Sensor


LoRaWAN®-enabled high-precision piezoresistive pressure sensor/depth gauge, including a temperature sensor Pressure measurement relative to atmospheric pressure (absolute pressure on request). Range: 0 … 1 bar (0 … 10 m); up to 30 bar (300 m) on request Cable length: 10 m (custom lengths on request) RS-485 interface for robust operation in harsh environments, even with cable lengths of several hundred meters Compatible with LoRaWAN® networks of any provider Place and measure: no setup is required Unattended real-time monitoring for several years without replacing batteries Robust polycarbonate enclosure: weatherproof, impact-, UV-resistant (IP67) Standard alkaline (C-type) batteries


Use Case Applications:

Outdoor remote monitoring. Level/depth monitoring in tanks for liquids. Groundwater level monitoring. Level/depth monitoring in wells up to 300 meters deep. Water depth and temperature monitoring in running or open water.

Additional information

Brand DecentLab
Model DL-PR36-001
Data Sheet Download Datasheet
IP Rating IP67
Certification CE
